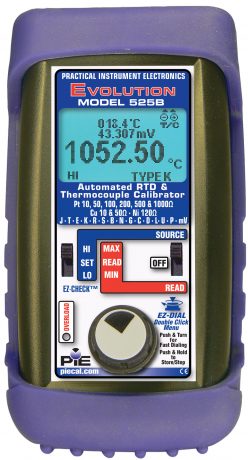

RTD & Thermocouple Calibrator PIE 525B | Advanced troubleshooting tools for engine systems

Description

• Calibrate RTD instruments to 0.1 & 0.01 °F & °C
  Pt 10, 50, 100, 200, 500 & 1000 Ohm (3850)
  Pt 100 Ohm (alpha=3902, 3916, 3926)
  Cu 10 & 50 Ohm and Ni 120 Ohm
• Calibrate with Confidence
  Resolution to 0.01 °F & °C; accurate to 0.2°
  Cold Junction Sensor accurate to 0.05°C
• Troubleshoot RTD Sensors & Instruments
  Automatic detection of 2, 3 or 4 wire connections indicates when individual wire connections are open. Verify proper instrument operation by measuring the excitation current.
• Faster Calibrations
  Instantly select three outputs with EZ-CHECK switch
  Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping
• Easily Change T/C and RTD Types & Scale
  Double click to select T/C or RTD type & °F & °C
• Use in the Plant, Field or Shop
  Includes Rubber Boot and mV Test Leads
  Low profile switches resist accidental damage
  Brass screws for T/C wires plus mini T/C socket
• Easy-to-Read Display
  Turn on the backlight to read in dark areas of the plant
• Simple “No Tool” Battery Changes
  Four inexpensive “AA” batteries
• Additional Cable package(s) available for XCP, ESD or legacy systems. Contains  XCP or ESD  Cal Cable, Probe interface cable and a legacy pickup cable adapter.
