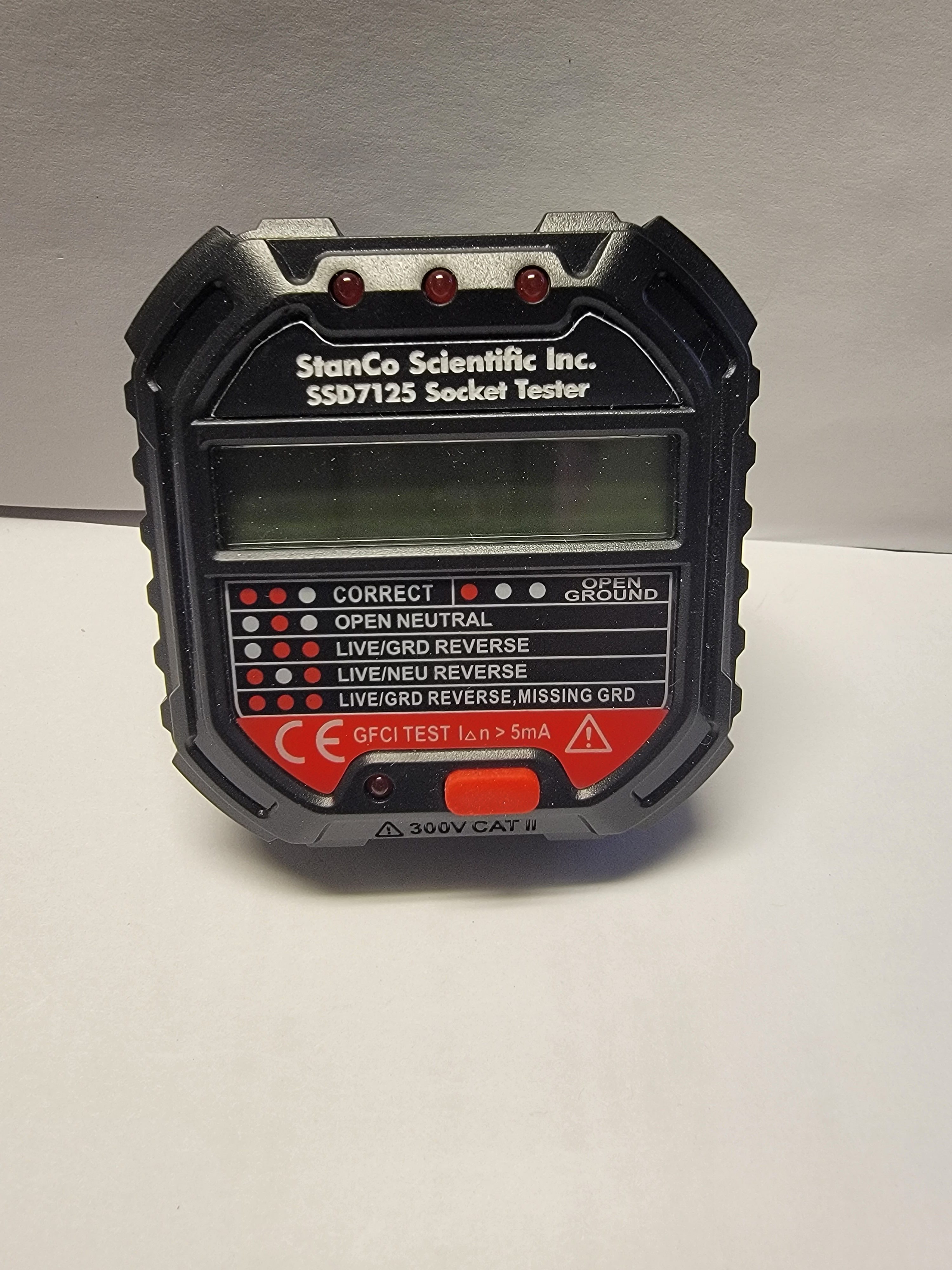

SSD7125 Socket Tester Pro

Description

Features:
PORTABLE ELECTRIC SOCKET TESTER — Advanced socket tester for rapidly detecting whether the socket’s wire connection is correct or not.  Compact size, light weight and convenient to use. With voltage back light LCD display for testing voltage.
PLUG & PLAY — Designed with RCD/GFCI Test Button, One Click to know the working state of the leakage protector.  Perfect for protect your security against the risk of electric shock.
BRIGHT LED DISPLAY — Light patterns are well labeled on the back of the device itself. The Red LED indicators can be light up clearly even in strong sunlight also be used in the dark, making you read it fast.
6 LED LIGHT PATTERNS — With 6 easy to read indicators to indicate the state of the socket, easy to judge: Correct, Open Ground, Open Neutral, Live/Neutral Reverse, Live/Ground Reverse, Live/Ground Reverse, Missing Ground.
WIDE APPLICATION – Widely used for electric maintenance testing, office sockets testing, power strips testing and wall sockets testing in school, laboratory, factory and other social field. Home improvement acceptance and safety inspection,It saves you lots of time in testing problems with sockets.Specification:
Color: Black
Model: SSD7125
Material: Flame Retardant ABS
Operating Voltage: 90~250V/45~65Hz
Phase Voltage: 90~250V/45~65Hz
Leakage Voltage: 0~99V/45~65Hz
Accuracy: ± (2.0%+2)
RCD Test: >30mA (EU/UK Plug)
RCD Working Voltage: 220V±20V
GFCI Test: >5mA (US Plug)
GFCI Working Voltage: 110V±20V
Working Environment: 0℃ ~ 40℃, 20% ~75%RH
Storage Environment: -10℃ ~ 50℃, 20% ~80%RH
Item Size: 68 * 65 * 60mm / 2.7 * 2.6 * 2.4in
Item Weight: 74g/2.6ozPackage Included:
1 * Electric Socket Tester

MODEL: SSD7125
