SSD7500 TACH and RPM Readout.

Description

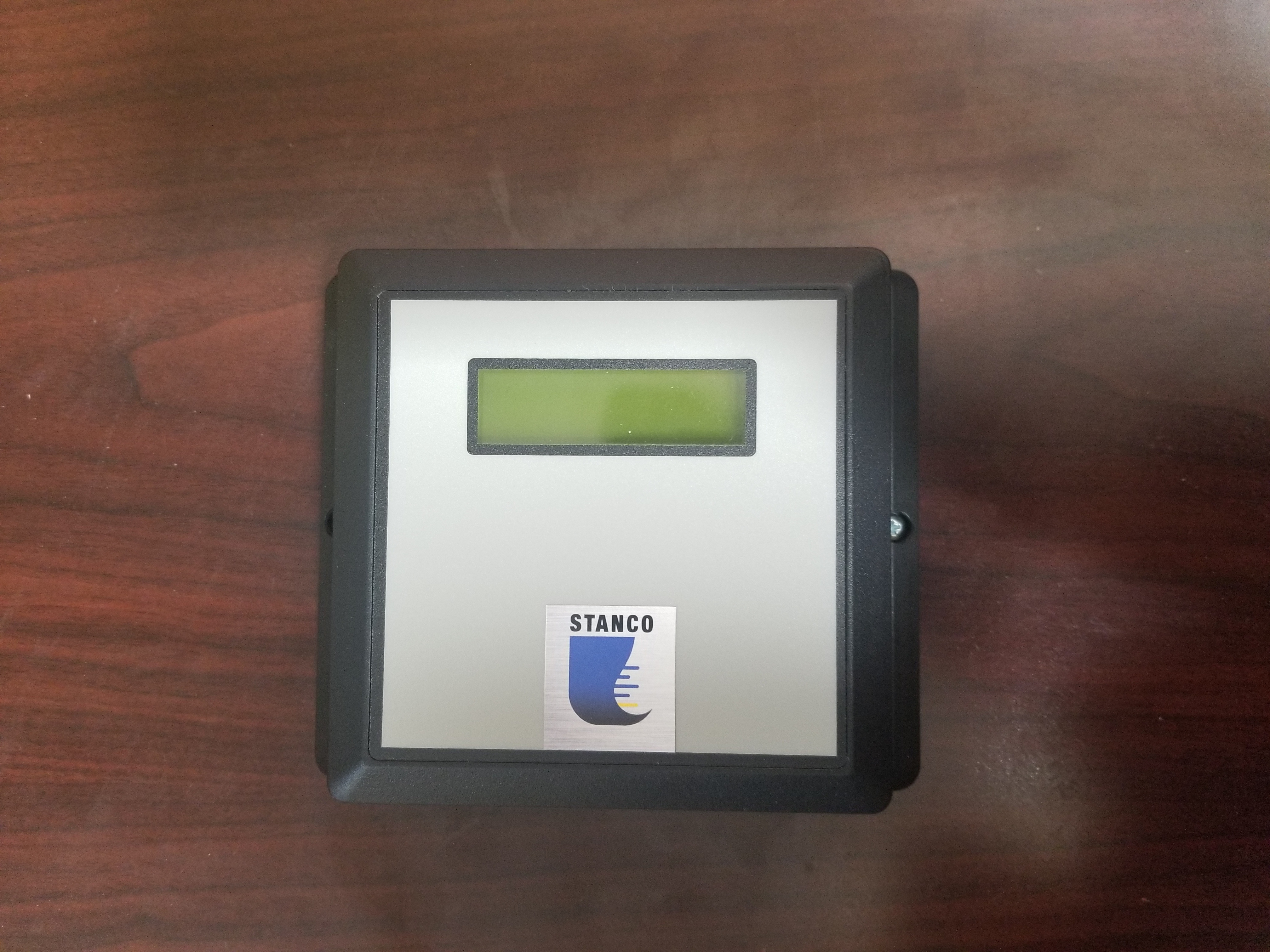

The SSD7500 is a direct replacement for the legacy  readout found on many panels.

Features:
– Simultaneous Indicating of RPM and DEG
– Accurate Measurement of Ignition Timing
– Precise Digital Readout of Engine Timing Degrees
– Accurate Tachometer
– Sensor Failure Indication
The Digital Timing Indicator give a numerical readout of the ignition system timing point in degrees
before or after top dead center.
Input signals are from no.1 cylinder and a magnetic pickup to sense a top dead center reference.
The RPM and DEG values are displayed simultaneously on a backlighted LCD display.
Electrical Specifications:
Power requirement: 90-230V AC, 50-60 Hz or 100V-300V DC, 1VA-0.5VA or 1W-500mW
Timing Angle Measurement
Measurement Range: 0° to ±179° (360 Degrees) with 1 Degree increment readout
Internal Measurement Accuracy: ±0.1 DEG
Tachometer
Tachometer range: 100 RPM to 2000 RPM with 1 RPM increment readout
Internal Measurement Accuracy: ±0.1 RPM
Temperature Compensated Reference Oscillator
Ambient temperature range: -20°C to +70°C (limited by LCD display operating temperature range)
Sensor Inputs are compatible with all Magnetic Pickup and VR Sensors with the following specifications:
– Magnetic Pickup Pulse Output Requirements for RPM Input: 5V peak min. @ 1mA min.
– VR Sensor Pulse Output Requirements for IGN Input: 30V peak min. @ 1mA min
